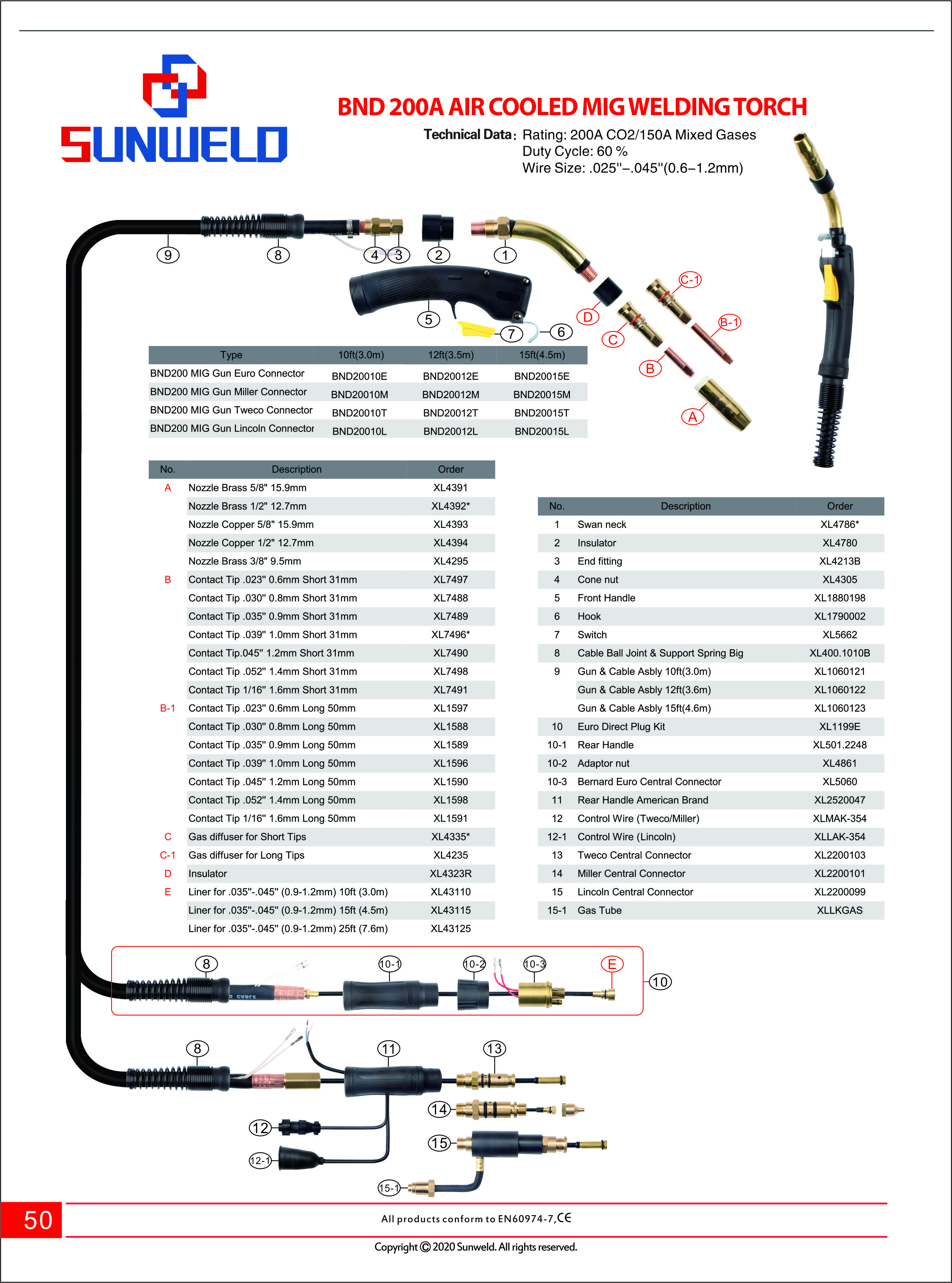

BND 200A AIR COOLED MIG WELDING TORCH |
| Technical Data： |
Rating: 200A CO2/150A Mixed Gases |
|
|
Duty Cycle: 60 % |
|
|
Wire Size: .025”-.045”(0.6-1.2mm) |
|
|
|
|
|
Type |
10ft(3.0m) |
|
BND200 MIG Gun Euro Connector |
XLBND20010E |
|
BND200 MIG Gun Miller Connector |
XLBND20010M |
|
BND200 MIG Gun Tweco Connector |
XLBND20010T |
|
BND200 MIG Gun Lincoln Connector |
XLBND20010L |
|
|
|
| No. |
Description |
Order |
| A |
Nozzle Brass 5/8″ 15.9mm |
XL4391 |
|
Nozzle Brass 1/2″ 12.7mm |
XL4392* |
|
Nozzle Copper 5/8″ 15.9mm |
XL4393 |
|
Nozzle Copper 1/2″ 12.7mm |
XL4394 |
|
Nozzle Brass 3/8″ 9.5mm |
XL4295 |
| B |
Contact Tip .023” 0.6mm Short 31mm |
XL7497 |
|
Contact Tip .030” 0.8mm Short 31mm |
XL7488 |
|
Contact Tip .035” 0.9mm Short 31mm |
XL7489 |
|
Contact Tip .039” 1.0mm Short 31mm |
XL7496* |
|
Contact Tip.045” 1.2mm Short 31mm |
XL7490 |
|
Contact Tip .052” 1.4mm Short 31mm |
XL7498 |
|
Contact Tip 1/16” 1.6mm Short 31mm |
XL7491 |
| B-1 |
Contact Tip .023” 0.6mm Long 50mm |
XL1597 |
|
Contact Tip .030” 0.8mm Long 50mm |
XL1588 |
|
Contact Tip .035” 0.9mm Long 50mm |
XL1589 |
|
Contact Tip .039” 1.0mm Long 50mm |
XL1596 |
|
Contact Tip .045” 1.2mm Long 50mm |
XL1590 |
|
Contact Tip .052” 1.4mm Long 50mm |
XL1598 |
|
Contact Tip 1/16” 1.6mm Long 50mm |
XL1591 |
| C |
Gas diffuser for Short Tips |
XL4335* |
| C-1 |
Gas diffuser for Long Tips |
XL4235 |
| D |
Insulator |
XL4323R |
| E |
Liner for .035”-.045” (0.9-1.2mm) 10ft (3.0m) |
XL43110 |
|
Liner for .035”-.045” (0.9-1.2mm) 15ft (4.5m) |
XL43115 |
|
Liner for .035”-.045” (0.9-1.2mm) 25ft (7.6m) |
XL43125 |
|
|
|
| No. |
Description |
Order |
| 1 |
Swan neck |
XL4786* |
| 2 |
Insulator |
XL4780 |
| 3 |
End fitting |
XL4213B |
| 4 |
Cone nut |
XL4305 |
| 5 |
Front Handle |
XL1880198 |
| 6 |
Hook |
XL1790002 |
| 7 |
Switch |
XL5662 |
| 8 |
Cable Ball Joint & Support Spring Big |
XL400.1010B |
| 9 |
Gun & Cable Asbly 10ft(3.0m) |
XL1060121 |
|
Gun & Cable Asbly 12ft(3.6m) |
XL1060122 |
|
Gun & Cable Asbly 15ft(4.6m) |
XL1060123 |
| 10 |
Euro Direct Plug Kit |
XL1199E |
| 10-1 |
Rear Handle |
XL501.2248 |
| 10-2 |
Adaptor nut |
XL4861 |
| 10-3 |
Bernard Euro Central Connector |
XL5060 |
| 11 |
Rear Handle American Brand |
XL2520047 |
| 12 |
Control Wire (Tweco/Miller) |
XLMAK-354 |
| 12-1 |
Control Wire (TLincoln) |
XLLAK-354 |
| 13 |
Tweco Central Connector |
XL2200103 |
| 14 |
Miller Central Connector |
XL2200101 |
| 15 |
Lincoln Central Connector |
XL2200099 |
| 15-1 |
Gas Tube |
XLLKGAS |
