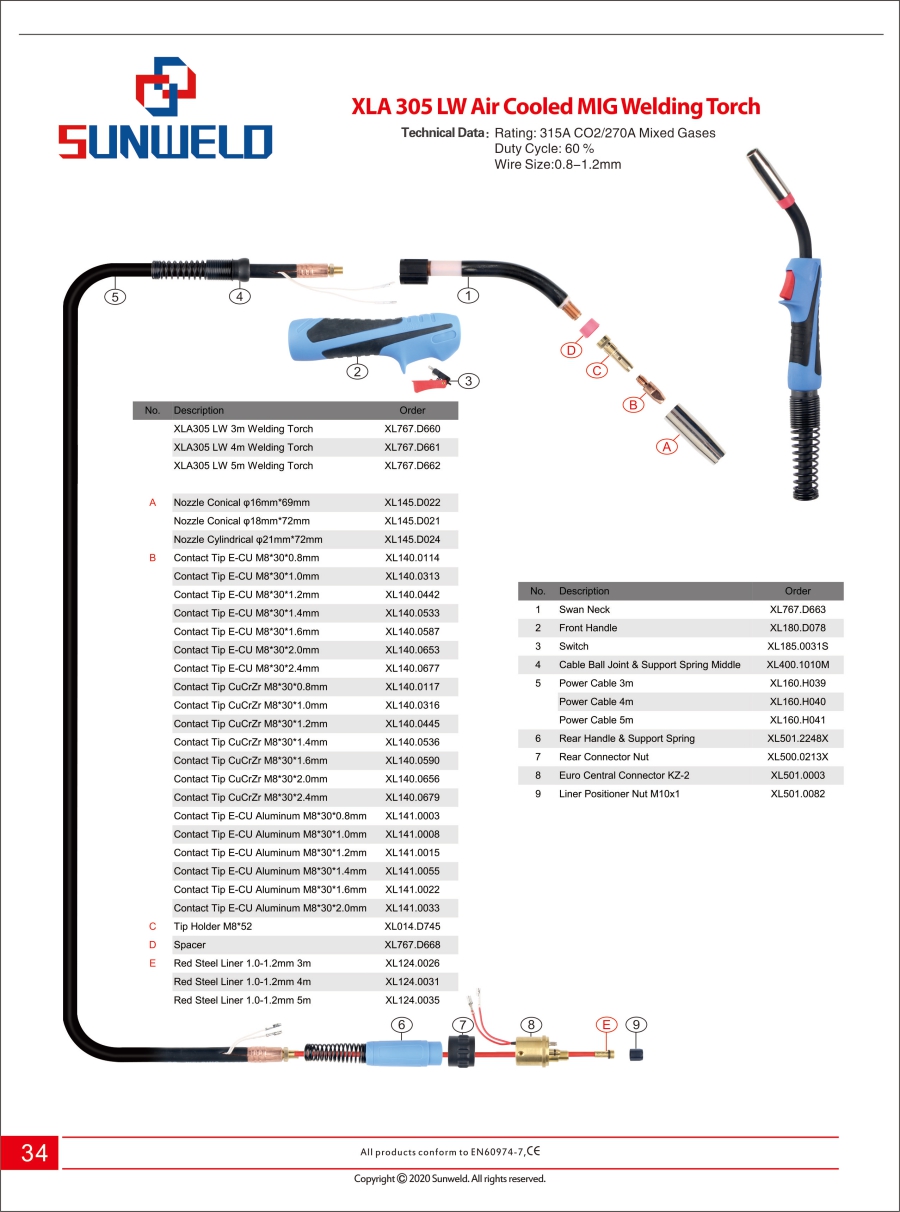

XLA 305 LW Air Cooled MIG Welding Torch |
| Technical Data： |
Rating: 315A CO2/270A Mixed Gases |
|
|
Duty Cycle:60% |
|
|
Wire Size:0.8-1.2mm |
|
| No. |
Description |
Order |
|
XLA305 LW 3m Welding Torch |
XL767.D660 |
|
XLA305 LW 4m Welding Torch |
XL767.D661 |
|
XLA305 LW 5m Welding Torch |
XL767.D662 |
|
|
|
| A |
Nozzle Conical φ16mm*69mm |
XL145.D022 |
|
Nozzle Conical φ18mm*72mm |
XL145.D021 |
|
Nozzle Cylindrical φ21mm*72mm |
XL145.D024 |
| B |
Contact Tip E-CU M8*30*0.8mm |
XL140.0114 |
|
Contact Tip E-CU M8*30*1.0mm |
XL140.0313 |
|
Contact Tip E-CU M8*30*1.2mm |
XL140.0442 |
|
Contact Tip E-CU M8*30*1.4mm |
XL140.0533 |
|
Contact Tip E-CU M8*30*1.6mm |
XL140.0587 |
|
Contact Tip E-CU M8*30*2.0mm |
XL140.0653 |
|
Contact Tip E-CU M8*30*2.4mm |
XL140.0677 |
|
Contact Tip CuCrZr M8*30*0.8mm |
XL140.0117 |
|
Contact Tip CuCrZr M8*30*1.0mm |
XL140.0316 |
|
Contact Tip CuCrZr M8*30*1.2mm |
XL140.0445 |
|
Contact Tip CuCrZr M8*30*1.4mm |
XL140.0536 |
|
Contact Tip CuCrZr M8*30*1.6mm |
XL140.0590 |
|
Contact Tip CuCrZr M8*30*2.0mm |
XL140.0656 |
|
Contact Tip CuCrZr M8*30*2.4mm |
XL140.0679 |
|
Contact Tip E-CU Aluminum M8*30*0.8mm |
XL141.0003 |
|
Contact Tip E-CU Aluminum M8*30*1.0mm |
XL141.0008 |
|
Contact Tip E-CU Aluminum M8*30*1.2mm |
XL141.0015 |
|
Contact Tip E-CU Aluminum M8*30*1.4mm |
XL141.0055 |
|
Contact Tip E-CU Aluminum M8*30*1.6mm |
XL141.0022 |
|
Contact Tip E-CU Aluminum M8*30*2.0mm |
XL141.0033 |
| C |
Tip Holder M8*52 |
XL014.D745 |
| D |
Spacer |
XL767.D668 |
| E |
Red Steel Liner 1.0-1.2mm 3m |
XL124.0026 |
|
Red Steel Liner 1.0-1.2mm 4m |
XL124.0031 |
|
Red Steel Liner 1.0-1.2mm 5m |
XL124.0035 |
|
|
|
| No. |
Description |
Order |
| 1 |
Swan Neck |
XL767.D663 |
| 2 |
Front Handle |
XL180.D078 |
| 3 |
Switch |
XL185.0031S |
| 4 |
Cable Ball Joint & Support Spring Middle |
XL400.1010M |
| 5 |
Power Cable 3m |
XL160.H039 |
|
Power Cable 4m |
XL160.H040 |
|
Power Cable 5m |
XL160.H041 |
| 6 |
Rear Handle & Support Spring |
XL501.2248X |
| 7 |
Rear Connector Nut |
XL500.0213X |
| 8 |
Euro Central Connector KZ-2 |
XL501.0003 |
| 9 |
Liner Positioner Nut M10x1 |
XL501.0082 |
