AT 405LW 420Amp MIG/MAG Welding Torch Air Cooled (XL015.D070 XL015.D071 XL015.D072)

AT 405LW 420Amp MIG/MAG Welding Torch Air Cooled (XL015.D070 XL015.D071 XL015.D072)

Short Description:

XLAT405 LW Air Cooled MIG Welding Torch
Technical data： Rating: 400A CO2/370A Mixed Gases
Duty Cycle: 60%
Wire Size: 1.0-1.6mm
XLAT405LW 3m Welding Torch XL015.D070
XLAT405LW 4m Welding Torch XL015.D071
XLAT405LW 5m Welding Torch XL015.D072


Product Detail

Product Tags

1 2 3 4 AT405

XLAT405 LW Air Cooled MIG Welding Torch
Technical data： Rating: 400A CO2/370A Mixed Gases
Duty Cycle: 60%
Wire Size: 1.0-1.6mm

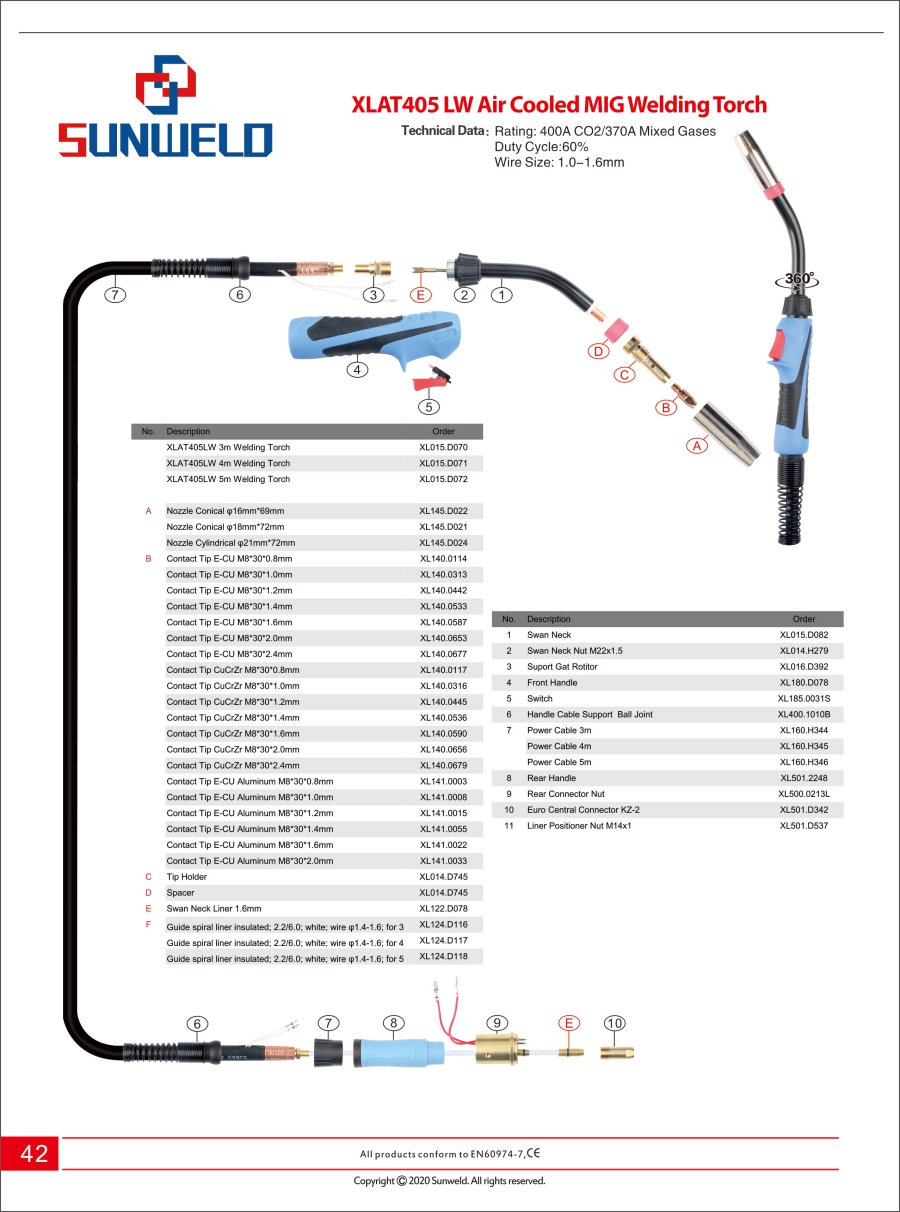

No. Description Order
XLAT405LW 3m Welding Torch XL015.D070
XLAT405LW 4m Welding Torch XL015.D071
XLAT405LW 5m Welding Torch XL015.D072
A Nozzle Conical φ16mm*69mm XL145.D022
Nozzle Conical φ18mm*72mm XL145.D021
Nozzle Cylindrical φ21mm*72mm XL145.D024
B Contact Tip E-CU M8*30*0.8mm XL140.0114
Contact Tip E-CU M8*30*1.0mm XL140.0313
Contact Tip E-CU M8*30*1.2mm XL140.0442
Contact Tip E-CU M8*30*1.4mm XL140.0533
Contact Tip E-CU M8*30*1.6mm XL140.0587
Contact Tip E-CU M8*30*2.0mm XL140.0653
Contact Tip E-CU M8*30*2.4mm XL140.0677
Contact Tip CuCrZr M8*30*0.8mm XL140.0117
Contact Tip CuCrZr M8*30*1.0mm XL140.0316
Contact Tip CuCrZr M8*30*1.2mm XL140.0445
Contact Tip CuCrZr M8*30*1.4mm XL140.0536
Contact Tip CuCrZr M8*30*1.6mm XL140.0590
Contact Tip CuCrZr M8*30*2.0mm XL140.0656
Contact Tip CuCrZr M8*30*2.4mm XL140.0679
Contact Tip E-CU Aluminum M8*30*0.8mm XL141.0003
Contact Tip E-CU Aluminum M8*30*1.0mm XL141.0008
Contact Tip E-CU Aluminum M8*30*1.2mm XL141.0015
Contact Tip E-CU Aluminum M8*30*1.4mm XL141.0055
Contact Tip E-CU Aluminum M8*30*1.6mm XL141.0022
Contact Tip E-CU Aluminum M8*30*2.0mm XL141.0033
C Tip Holder XL014.D745
D Spacer XL015.D080
E Swan Neck Liner 1.6mm XL122.D078
F Guide spiral liner insulated; 2.2/6.0; white; wire φ1.4-1.6; for 3.0m XL124.D116
Guide spiral liner insulated; 2.2/6.0; white; wire φ1.4-1.6; for 4.0m XL124.D117
Guide spiral liner insulated; 2.2/6.0; white; wire φ1.4-1.6; for 5.0m XL124.D118
No. Description Order
1 Swan Neck XL015.D082
2 Swan Neck Nut M22x1.5 XL014.H279
3 Suport Gat Rotitor XL016.D392
4 Front Handle XL180.D078
5 Switch XL185.0031S
6 Handle Cable Support  Ball Joint XL400.1010B
7 Power Cable 3m XL160.H344
Power Cable 4m XL160.H345
Power Cable 5m XL160.H346
8 Rear Handle XL501.2248
9 Rear Connector Nut XL500.0213L
10 Euro Central Connector KZ-2 XL501.D342
11 Liner Positioner Nut M14x1 XL501.D537
