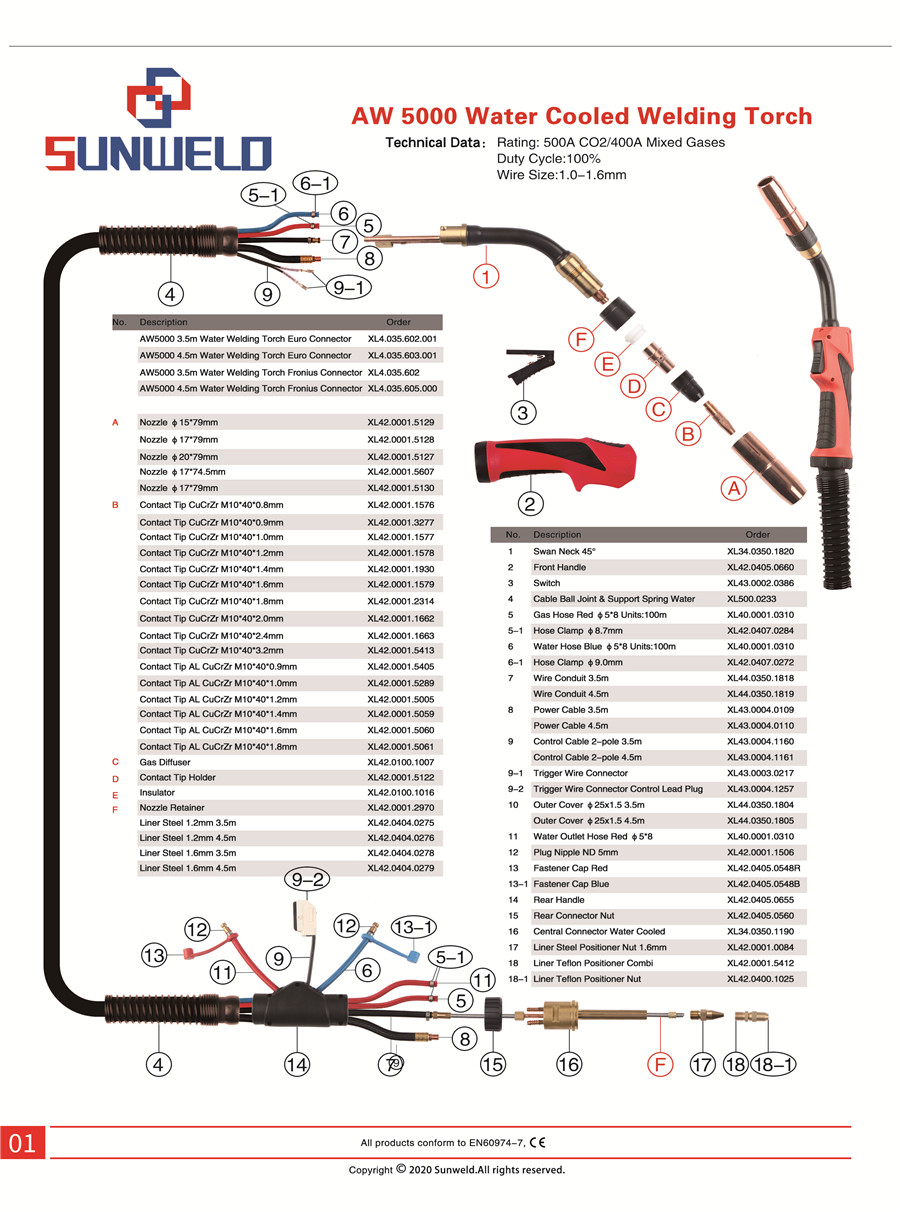

AW 5000 Water Cooled Welding Torch |
|
| Technical Data： |
Rating: 500A CO2/400A Mixed Gases |
|
|
Duty Cycle:100% |
|
|
Wire Size:1.0-1.6mm |
|
| No. |
Description |
Order |
|
AW5000 3.5m Water Welding Torch Euro Connector |
XL4.035.604.001 |
|
AW5000 4.5m Water Welding Torch Euro Connector |
XL4.035.605.001 |
|
AW5000 3.5m Water Welding Torch Fronius Connector |
XL4.035.604.000 |
|
AW5000 4.5m Water Welding Torch Fronius Connector |
XL4.035.605.000 |
|
|
|
| A |
Nozzle φ15*79mm |
XL42.0001.5129 |
|
Nozzle φ17*79mm |
XL42.0001.5128 |
|
Nozzle φ20*79mm |
XL42.0001.5127 |
|
Nozzle φ17*74.5mm |
XL42.0001.5607 |
|
Nozzle φ17*79mm |
XL42.0001.5130 |
| B |
Contact Tip CuCrZr M10*40*0.8mm |
XL42.0001.1576 |
|
Contact Tip CuCrZr M10*40*0.9mm |
XL42.0001.3277 |
|
Contact Tip CuCrZr M10*40*1.0mm |
XL42.0001.1577 |
|
Contact Tip CuCrZr M10*40*1.2mm |
XL42.0001.1578 |
|
Contact Tip CuCrZr M10*40*1.4mm |
XL42.0001.1930 |
|
Contact Tip CuCrZr M10*40*1.6mm |
XL42.0001.1579 |
|
Contact Tip CuCrZr M10*40*1.8mm |
XL42.0001.2314 |
|
Contact Tip CuCrZr M10*40*2.0mm |
XL42.0001.1662 |
|
Contact Tip CuCrZr M10*40*2.4mm |
XL42.0001.1663 |
|
Contact Tip CuCrZr M10*40*3.2mm |
XL42.0001.5413 |
|
Contact Tip AL CuCrZr M10*40*0.9mm |
XL42.0001.5405 |
|
Contact Tip AL CuCrZr M10*40*1.0mm |
XL42.0001.5289 |
|
Contact Tip AL CuCrZr M10*40*1.2mm |
XL42.0001.5005 |
|
Contact Tip AL CuCrZr M10*40*1.4mm |
XL42.0001.5059 |
|
Contact Tip AL CuCrZr M10*40*1.6mm |
XL42.0001.5060 |
|
Contact Tip AL CuCrZr M10*40*1.8mm |
XL42.0001.5061 |
| C |
Gas Diffuser |
XL42.0100.1007 |
| D |
Contact Tip Holder |
XL42.0001.5122 |
| E |
Insulator |
XL42.0100.1016 |
| F |
Nozzle Retainer |
XL42.0001.2970 |
| G |
Fronius Liner Steel 1.2-1.6mm 3.5m |
XL42.0404.0182 |
|
Fronius Liner Steel 1.2-1.6mm 4.5m |
XL42.0404.0183 |
|
Fronius Liner Steel 1.6mm 3.5m |
XL42.0404.0184 |
|
Fronius Liner Steel 1.6mm 4.5m |
XL42.0404.0185 |
|
|
|
| No. |
Description |
Order |
| 1 |
Swan Neck 45° |
XL34.0350.1820 |
| 2 |
Front Handle |
XL42.0405.0660 |
| 3 |
Switch |
XL43.0002.0386 |
| 4 |
Cable Ball Joint & Support Spring Water |
XL500.0233 |
| 5 |
Gas Hose Red φ5*8 Units:100m |
XL40.0001.0310 |
| 5-1 |
Hose Clamp φ8.7mm |
XL42.0407.0284 |
| 6 |
Water Hose Blue φ5*8 Units:100m |
XL40.0001.0310 |
| 6-1 |
Hose Clamp φ9.0mm |
XL42.0407.0272 |
| 7 |
Wire Conduit 3.5m |
XL44.0350.1818 |
|
Wire Conduit 4.5m |
XL44.0350.1819 |
| 8 |
Power Cable 3.5m |
XL43.0004.0109 |
|
Power Cable 4.5m |
XL43.0004.0110 |
| 9 |
Control Cable 2-pole 3.5m |
XL43.0004.1160 |
|
Control Cable 2-pole 4.5m |
XL43.0004.1161 |
| 9-1 |
Trigger Wire Connector |
XL43.0003.0217 |
| 9-2 |
Trigger Wire Connector Control Lead Plug |
XL43.0004.1257 |
| 10 |
Outer Cover φ25×1.5 3.5m |
XL44.0350.1804 |
|
Outer Cover φ25×1.5 4.5m |
XL44.0350.1805 |
| 11 |
Water Outlet Hose Red φ5*8 |
XL40.0001.0310 |
| 12 |
Plug Nipple ND 5mm |
XL42.0001.1506 |
| 13 |
Fastener Cap Red |
XL42.0405.0548R |
| 13-1 |
Fastener Cap Blue |
XL42.0405.0548B |
| 14 |
Rear Handle |
XL42.0405.0655 |
| 15 |
Rear Connector Nut |
XL42.0405.0560 |
| 16 |
Central Connector Water Cooled |
XL34.0350.1190 |
| 17 |
Liner Steel Positioner Nut 1.6mm |
XL42.0001.0084 |
| 18 |
Liner Teflon Positioner Combi |
XL42.0001.5412 |
| 18-1 |
Liner Teflon Positioner Nut |
XL42.0400.1025 |
