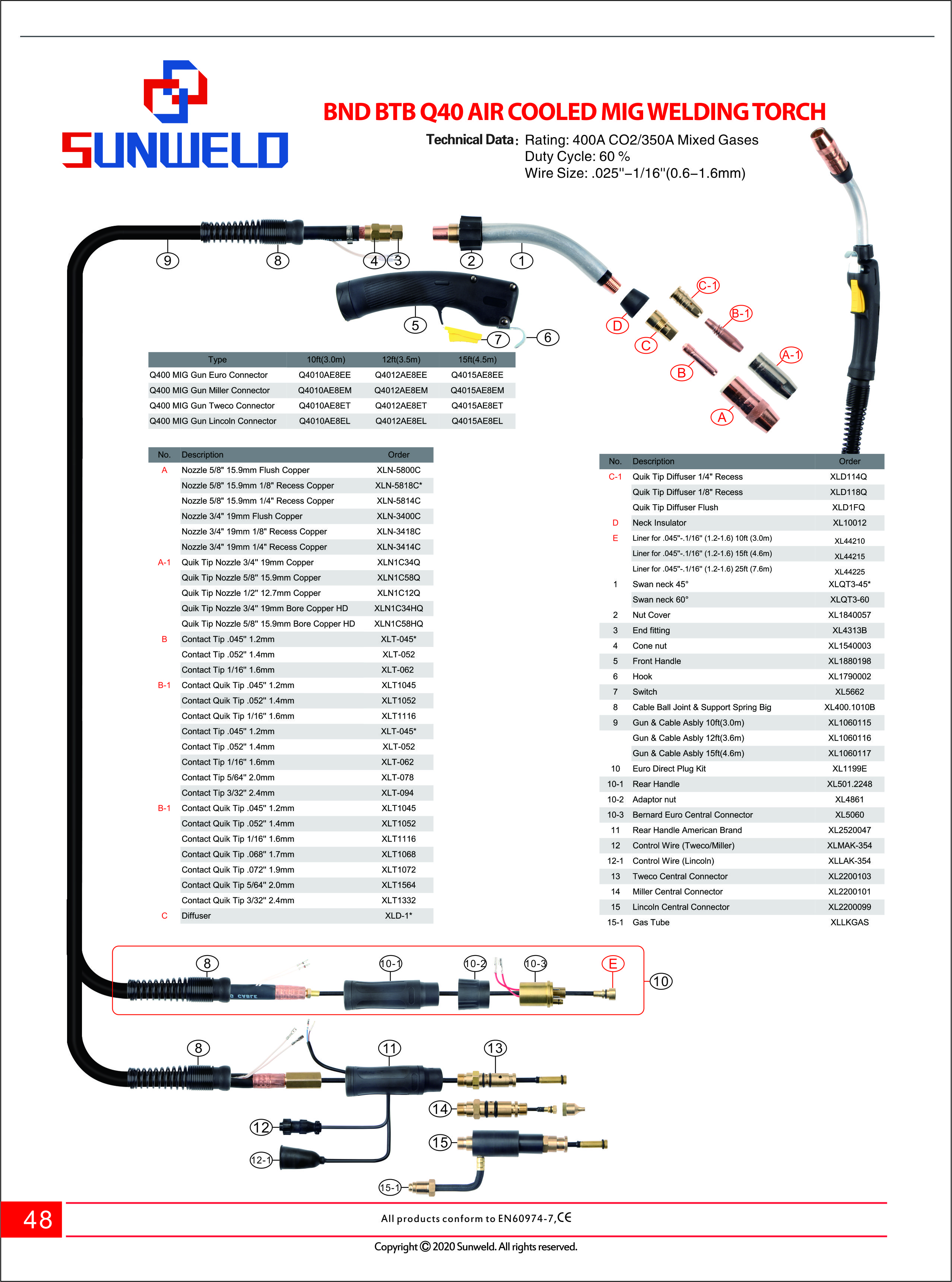

BND BTB Q40 AIR COOLED MIG WELDING TORCH |
|
| Technical Data： |
Rating: 400A CO2/350A Mixed Gases |
|
|
Duty Cycle: 60% |
|
|
Wire Size: .025”-1/16”(0.6-1.6mm) |
|
|
|
|
|
Type |
10ft(3.0m) |
|
Q400 MIG Gun Euro Connector |
Q4010AE8EE |
|
Q400 MIG Gun Miller Connector |
Q4010AE8EM |
|
Q400 MIG Gun Tweco Connector |
Q4010AE8ET |
|
Q400 MIG Gun Lincoln Connector |
Q4010AE8EL |
|
|
|
| No. |
Description |
Order |
| A |
Nozzle 5/8″ 15.9mm Flush Copper |
XLN-5800C |
|
Nozzle 5/8″ 15.9mm 1/8″ Recess Copper |
XLN-5818C* |
|
Nozzle 5/8″ 15.9mm 1/4″ Recess Copper |
XLN-5814C |
|
Nozzle 3/4″ 19mm Flush Copper |
XLN-3400C |
|
Nozzle 3/4″ 19mm 1/8″ Recess Copper |
XLN-3418C |
|
Nozzle 3/4″ 19mm 1/4″ Recess Copper |
XLN-3414C |
| A-1 |
Quik Tip Nozzle 3/4” 19mm Copper |
XLN1C34Q |
|
Quik Tip Nozzle 3/4” 19mm Brass |
XLN1B34Q |
|
Quik Tip Nozzle 5/8” 15.9mm Copper |
XLN1C58Q |
|
Quik Tip Nozzle 5/8” 15.9mm Brass |
XLN1B58Q |
|
Quik Tip Nozzle 1/2” 12.7mm Copper |
XLN1C12Q |
|
Quik Tip Nozzle 3/4” 19mm Bore Copper HD |
XLN1C34HQ |
|
Quik Tip Nozzle 5/8” 15.9mm Bore Copper HD |
XLN1C58HQ |
| B |
Contact Tip .023” 0.6mm |
XLT-023 |
|
Contact Tip .030” 0.8mm |
XLT-030 |
|
Contact Tip .035” 0.9mm |
XLT-035 |
|
Contact Tip .039” 1.0mm |
XLT-039 |
|
Contact Tip .045” 1.2mm |
XLT-045* |
|
Contact Tip .052” 1.4mm |
XLT-052 |
|
Contact Tip 1/16” 1.6mm |
XLT-062 |
|
Contact Tip 5/64” 2.0mm |
XLT-078 |
|
Contact Tip 3/32” 2.4mm |
XLT-094 |
| B-1 |
Contact Quik Tip .045” 1.2mm |
XLT1045 |
|
Contact Quik Tip .052” 1.4mm |
XLT1052 |
|
Contact Quik Tip 1/16” 1.6mm |
XLT1116 |
|
Contact Quik Tip .068” 1.7mm |
XLT1068 |
|
Contact Quik Tip .072” 1.9mm |
XLT1072 |
|
Contact Quik Tip 5/64” 2.0mm |
XLT1564 |
|
Contact Quik Tip 3/32” 2.4mm |
XLT1332 |
| C |
Diffuser |
XLD-1* |
| C-1 |
Quik Tip Diffuser 1/4″ Recess |
XLD114Q |
|
Quik Tip Diffuser 1/8″ Recess |
XLD118Q |
|
Quik Tip Diffuser Flush |
XLD1FQ |
| D |
Neck Insulator |
XL10012 |
| E |
Liner for .045”-.1/16” (1.2-1.6) 10ft (3.0m) |
XL44210 |
|
Liner for .045”-.1/16” (1.2-1.6) 15ft (4.6m) |
XL44215 |
|
Liner for .045”-.1/16” (1.2-1.6) 25ft (7.6m) |
XL44225 |
|
|
|
| No. |
Description |
Order |
| 1 |
Swan neck 45° |
XLQT3-45* |
|
Swan neck 60° |
XLQT3-60 |
| 2 |
Nut Cover |
XL1840057 |
| 3 |
End fitting |
XL4313B |
| 4 |
Cone nut |
XL1540003 |
| 5 |
Front Handle |
XL1880198 |
| 6 |
Hook |
XL1790002 |
| 7 |
Switch |
XL5662 |
| 8 |
Cable Ball Joint & Support Spring Big |
XL400.1010B |
| 9 |
Gun & Cable Asbly 10ft(3.0m) |
XL1060115 |
|
Gun & Cable Asbly 12ft(3.6m) |
XL1060116 |
|
Gun & Cable Asbly 15ft(4.6m) |
XL1060117 |
| 10 |
Euro Direct Plug Kit |
XL1199E |
| 10-1 |
Rear Handle |
XL501.2248 |
| 10-2 |
Adaptor nut |
XL4861 |
| 10-3 |
Bernard Euro Central Connector |
XL5060 |
| 11 |
Rear Handle American Brand |
XL2520047 |
| 12 |
Control Wire (Tweco/Miller) |
XLMAK-354 |
| 12-1 |
Control Wire (TLincoln) |
XLLAK-354 |
| 13 |
Tweco Central Connector |
XL2200103 |
| 14 |
Miller Central Connector |
XL2200101 |
| 15 |
Lincoln Central Connector |
XL2200099 |
| 15-1 |
Gas Tube |
XLLKGAS |
