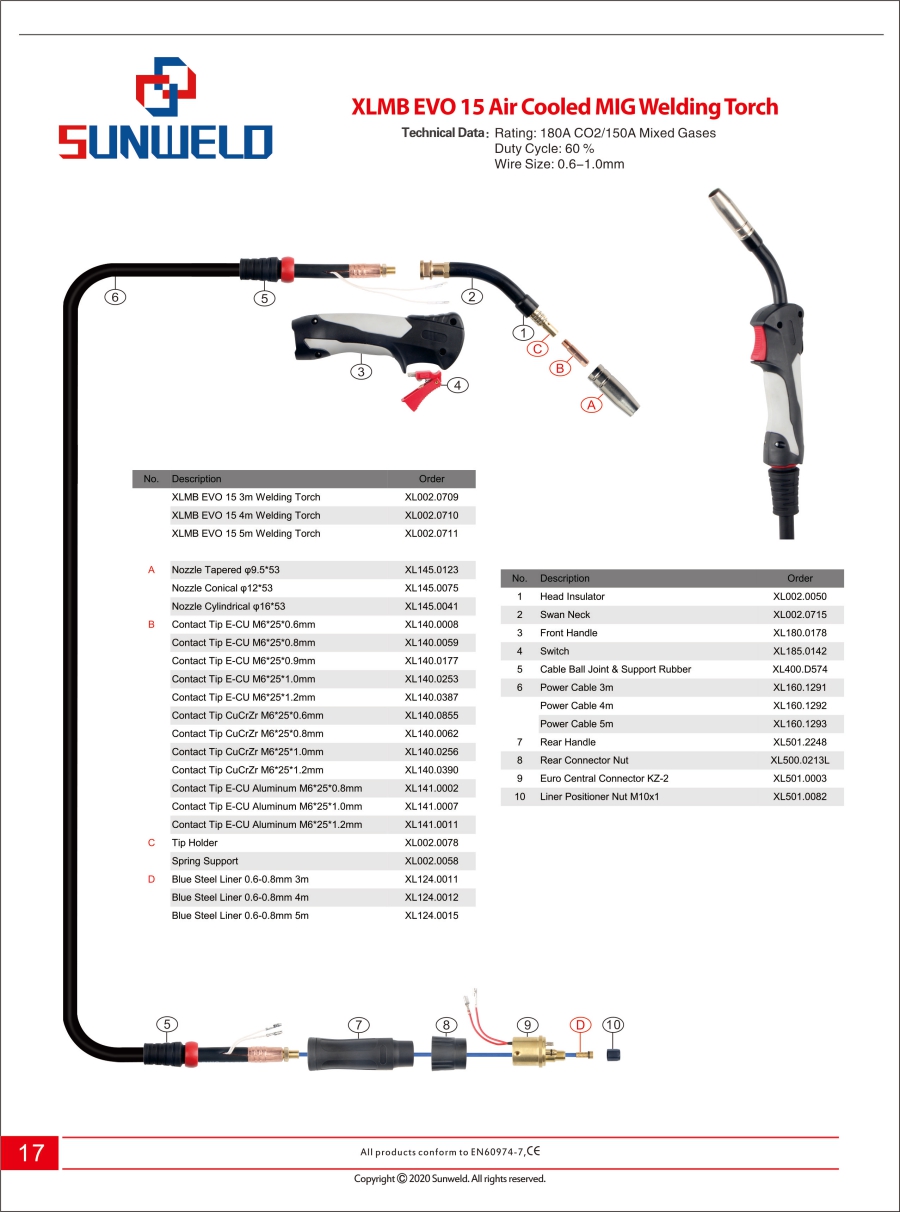

| XLMB EVO 15 Air Cooled MIG Welding Torch |
| Technical Data： |
Rating: 180A CO2/150A Mixed Gases |
|
|
Duty Cycle: 60 % |
|
|
Wire Size: 0.6-1.0mm |
|
| No. |
Description |
Order |
|
XLMB EVO 15 3m Welding Torch |
XL002.0709 |
|
XLMB EVO 15 4m Welding Torch |
XL002.0710 |
|
XLMB EVO 15 5m Welding Torch |
XL002.0711 |
|
|
|
| A |
Nozzle Tapered φ9.5*53 |
XL145.0123 |
|
Nozzle Conical φ12*53 |
XL145.0075 |
|
Nozzle Cylindrical φ16*53 |
XL145.0041 |
| B |
Contact Tip E-CU M6*25*0.6mm |
XL140.0008 |
|
Contact Tip E-CU M6*25*0.8mm |
XL140.0059 |
|
Contact Tip E-CU M6*25*0.9mm |
XL140.0177 |
|
Contact Tip E-CU M6*25*1.0mm |
XL140.0253 |
|
Contact Tip E-CU M6*25*1.2mm |
XL140.0387 |
|
Contact Tip CuCrZr M6*25*0.6mm |
XL140.0855 |
|
Contact Tip CuCrZr M6*25*0.8mm |
XL140.0062 |
|
Contact Tip CuCrZr M6*25*1.0mm |
XL140.0256 |
|
Contact Tip CuCrZr M6*25*1.2mm |
XL140.0390 |
|
Contact Tip E-CU Aluminum M6*25*0.8mm |
XL141.0002 |
|
Contact Tip E-CU Aluminum M6*25*1.0mm |
XL141.0007 |
|
Contact Tip E-CU Aluminum M6*25*1.2mm |
XL141.0011 |
| C |
Tip Holder |
XL002.0078 |
|
Spring Support |
XL002.0058 |
| D |
Blue Steel Liner 0.6-0.8mm 3m |
XL124.0011 |
|
Blue Steel Liner 0.6-0.8mm 4m |
XL124.0012 |
|
Blue Steel Liner 0.6-0.8mm 5m |
XL124.0015 |
|
|
|
| No. |
Description |
Order |
| 1 |
Head Insulator |
XL002.0050 |
| 2 |
Swan Neck |
XL002.0715 |
| 3 |
Front Handle |
XL180.0178 |
| 4 |
Switch |
XL185.0142 |
| 5 |
Cable Ball Joint & Support Rubber |
XL400.D574 |
| 6 |
Power Cable 3m |
XL160.1291 |
|
Power Cable 4m |
XL160.1292 |
|
Power Cable 5m |
XL160.1293 |
| 7 |
Rear Handle |
XL501.2248 |
| 8 |
Rear Connector Nut |
XL500.0213L |
| 9 |
Euro Central Connector KZ-2 |
XL501.0003 |
| 10 |
Liner Positioner Nut M10x1 |
XL501.0082 |
