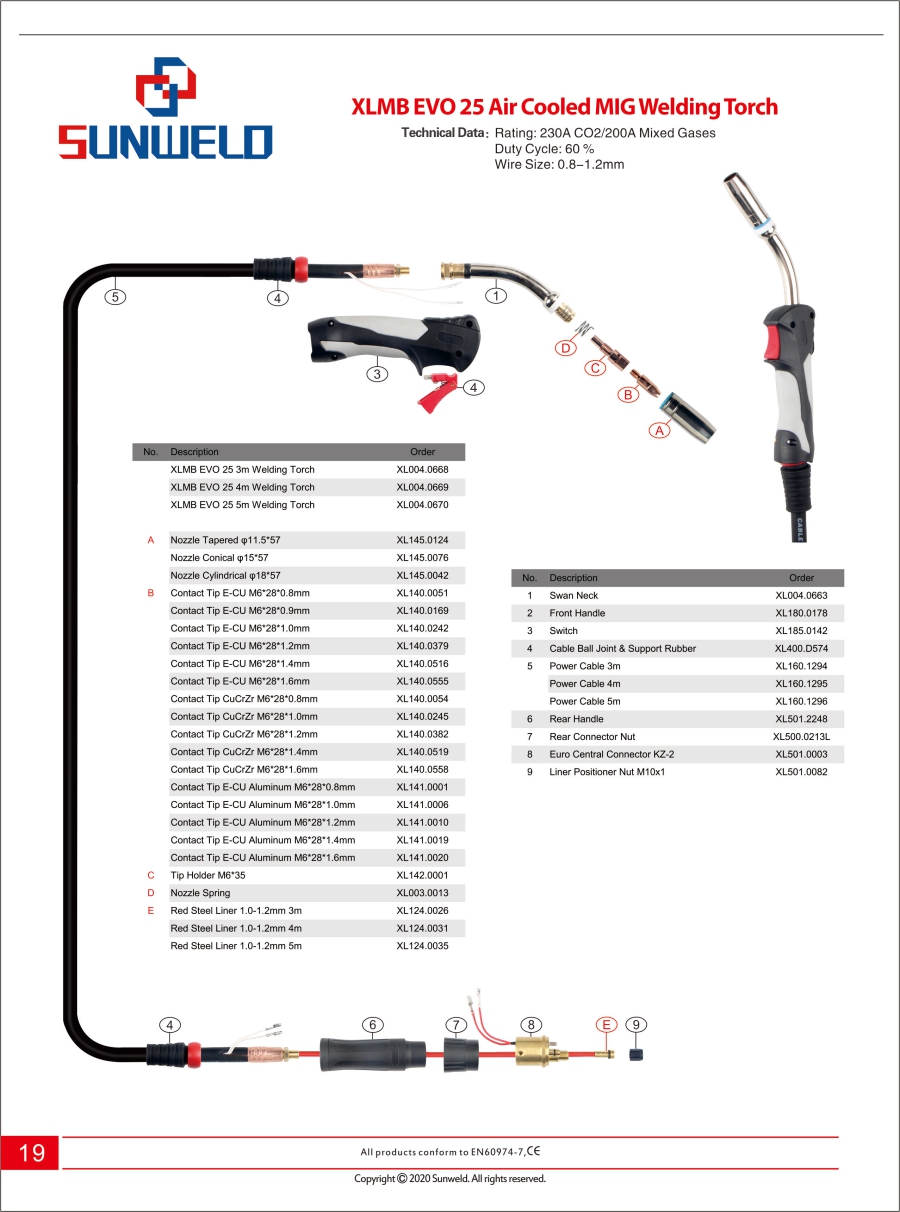

| XLMB EVO 25 Air Cooled MIG Welding Torch |
| Technical Data： |
Rating: 230A CO2/200A Mixed Gases |
|
|
Duty Cycle: 60% |
|
|
Wire Size: 0.8-1.2mm |
|
| No. |
Description |
Order |
|
XLMB EVO 25 3m Welding Torch |
XL004.0668 |
|
XLMB EVO 25 4m Welding Torch |
XL004.0669 |
|
XLMB EVO 25 5m Welding Torch |
XL004.0670 |
|
|
|
| A |
Nozzle Tapered φ11.5*57 |
XL145.0124 |
|
Nozzle Conical φ15*57 |
XL145.0076 |
|
Nozzle Cylindrical φ18*57 |
XL145.0042 |
| B |
Contact Tip E-CU M6*28*0.8mm |
XL140.0051 |
|
Contact Tip E-CU M6*28*0.9mm |
XL140.0169 |
|
Contact Tip E-CU M6*28*1.0mm |
XL140.0242 |
|
Contact Tip E-CU M6*28*1.2mm |
XL140.0379 |
|
Contact Tip E-CU M6*28*1.4mm |
XL140.0516 |
|
Contact Tip E-CU M6*28*1.6mm |
XL140.0555 |
|
Contact Tip CuCrZr M6*28*0.8mm |
XL140.0054 |
|
Contact Tip CuCrZr M6*28*1.0mm |
XL140.0245 |
|
Contact Tip CuCrZr M6*28*1.2mm |
XL140.0382 |
|
Contact Tip CuCrZr M6*28*1.4mm |
XL140.0519 |
|
Contact Tip CuCrZr M6*28*1.6mm |
XL140.0558 |
|
Contact Tip E-CU Aluminum M6*28*0.8mm |
XL141.0001 |
|
Contact Tip E-CU Aluminum M6*28*1.0mm |
XL141.0006 |
|
Contact Tip E-CU Aluminum M6*28*1.2mm |
XL141.0010 |
|
Contact Tip E-CU Aluminum M6*28*1.4mm |
XL141.0019 |
|
Contact Tip E-CU Aluminum M6*28*1.6mm |
XL141.0020 |
| C |
Tip Holder M6*35 |
XL142.0001 |
| D |
Nozzle Spring |
XL003.0013 |
| E |
Red Steel Liner 1.0-1.2mm 3m |
XL124.0026 |
|
Red Steel Liner 1.0-1.2mm 4m |
XL124.0031 |
|
Red Steel Liner 1.0-1.2mm 5m |
XL124.0035 |
|
|
|
| No. |
Description |
Order |
| 1 |
Swan Neck |
XL004.0663 |
| 2 |
Front Handle |
XL180.0178 |
| 3 |
Switch |
XL185.0142 |
| 4 |
Cable Ball Joint & Support Rubber |
XL400.D574 |
| 5 |
Power Cable 3m |
XL160.1294 |
|
Power Cable 4m |
XL160.1295 |
|
Power Cable 5m |
XL160.1296 |
| 6 |
Rear Handle |
XL501.2248 |
| 7 |
Rear Connector Nut |
XL500.0213L |
| 8 |
Euro Central Connector KZ-2 |
XL501.0003 |
| 9 |
Liner Positioner Nut M10x1 |
XL501.0082 |
