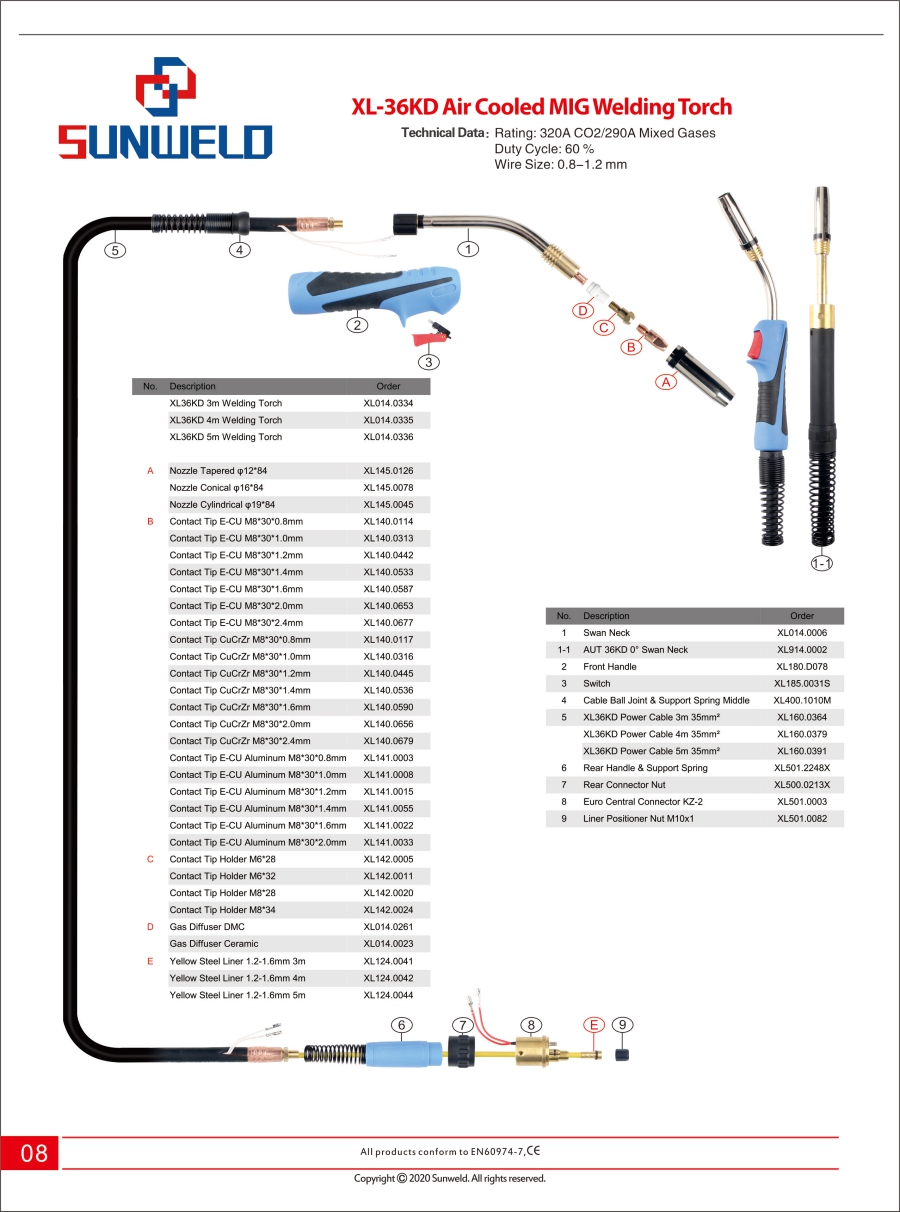

| XL-36KD Air Cooled MIG Welding Torch |
| Technical Data： |
Rating: 320A CO2/290A Mixed Gases |
|
|
Duty Cycle: 60 % |
|
|
Wire Size: 0.8-1.2 mm |
|
| No. |
Description |
Order |
|
XL36KD 3m Welding Torch |
XL014.0334 |
|
XL36KD 4m Welding Torch |
XL014.0335 |
|
XL36KD 5m Welding Torch |
XL014.0336 |
|
|
|
| A |
Nozzle Tapered φ12*84 |
XL145.0126 |
|
Nozzle Conical φ16*84 |
XL145.0078 |
|
Nozzle Cylindrical φ19*84 |
XL145.0045 |
| B |
Contact Tip E-CU M8*30*0.8mm |
XL140.0114 |
|
Contact Tip E-CU M8*30*1.0mm |
XL140.0313 |
|
Contact Tip E-CU M8*30*1.2mm |
XL140.0442 |
|
Contact Tip E-CU M8*30*1.4mm |
XL140.0533 |
|
Contact Tip E-CU M8*30*1.6mm |
XL140.0587 |
|
Contact Tip E-CU M8*30*2.0mm |
XL140.0653 |
|
Contact Tip E-CU M8*30*2.4mm |
XL140.0677 |
|
Contact Tip CuCrZr M8*30*0.8mm |
XL140.0117 |
|
Contact Tip CuCrZr M8*30*1.0mm |
XL140.0316 |
|
Contact Tip CuCrZr M8*30*1.2mm |
XL140.0445 |
|
Contact Tip CuCrZr M8*30*1.4mm |
XL140.0536 |
|
Contact Tip CuCrZr M8*30*1.6mm |
XL140.0590 |
|
Contact Tip CuCrZr M8*30*2.0mm |
XL140.0656 |
|
Contact Tip CuCrZr M8*30*2.4mm |
XL140.0679 |
|
Contact Tip E-CU Aluminum M8*30*0.8mm |
XL141.0003 |
|
Contact Tip E-CU Aluminum M8*30*1.0mm |
XL141.0008 |
|
Contact Tip E-CU Aluminum M8*30*1.2mm |
XL141.0015 |
|
Contact Tip E-CU Aluminum M8*30*1.4mm |
XL141.0055 |
|
Contact Tip E-CU Aluminum M8*30*1.6mm |
XL141.0022 |
|
Contact Tip E-CU Aluminum M8*30*2.0mm |
XL141.0033 |
| C |
Contact Tip Holder M6*28 |
XL142.0005 |
|
Contact Tip Holder M6*32 |
XL142.0011 |
|
Contact Tip Holder M8*28 |
XL142.0020 |
|
Contact Tip Holder M8*34 |
XL142.0024 |
| D |
Gas Diffuser DMC |
XL014.0261 |
|
Gas Diffuser Ceramic |
XL014.0023 |
| E |
Yellow Steel Liner 1.2-1.6mm 3m |
XL124.0041 |
|
Yellow Steel Liner 1.2-1.6mm 4m |
XL124.0042 |
|
Yellow Steel Liner 1.2-1.6mm 5m |
XL124.0044 |
|
|
|
| 1 |
Swan Neck |
XL014.0006 |
| 1-1 |
AUT 36KD 0° Swan Neck |
XL914.0002 |
| 2 |
Front Handle |
XL180.D078 |
| 3 |
Switch |
XL185.0031S |
| 4 |
Cable Ball Joint & Support Spring Middle |
XL400.1010M |
| 5 |
XL36KD Power Cable 3m 35mm² |
XL160.0364 |
|
XL36KD Power Cable 4m 35mm² |
XL160.0379 |
|
XL36KD Power Cable 5m 35mm² |
XL160.0391 |
| 6 |
Rear Handle & Support Spring |
XL501.2248X |
| 7 |
Rear Connector Nut |
XL500.0213X |
| 8 |
Euro Central Connector KZ-2 |
XL501.0003 |
| 9 |
Liner Positioner Nut M10x1 |
XL501.0082 |
