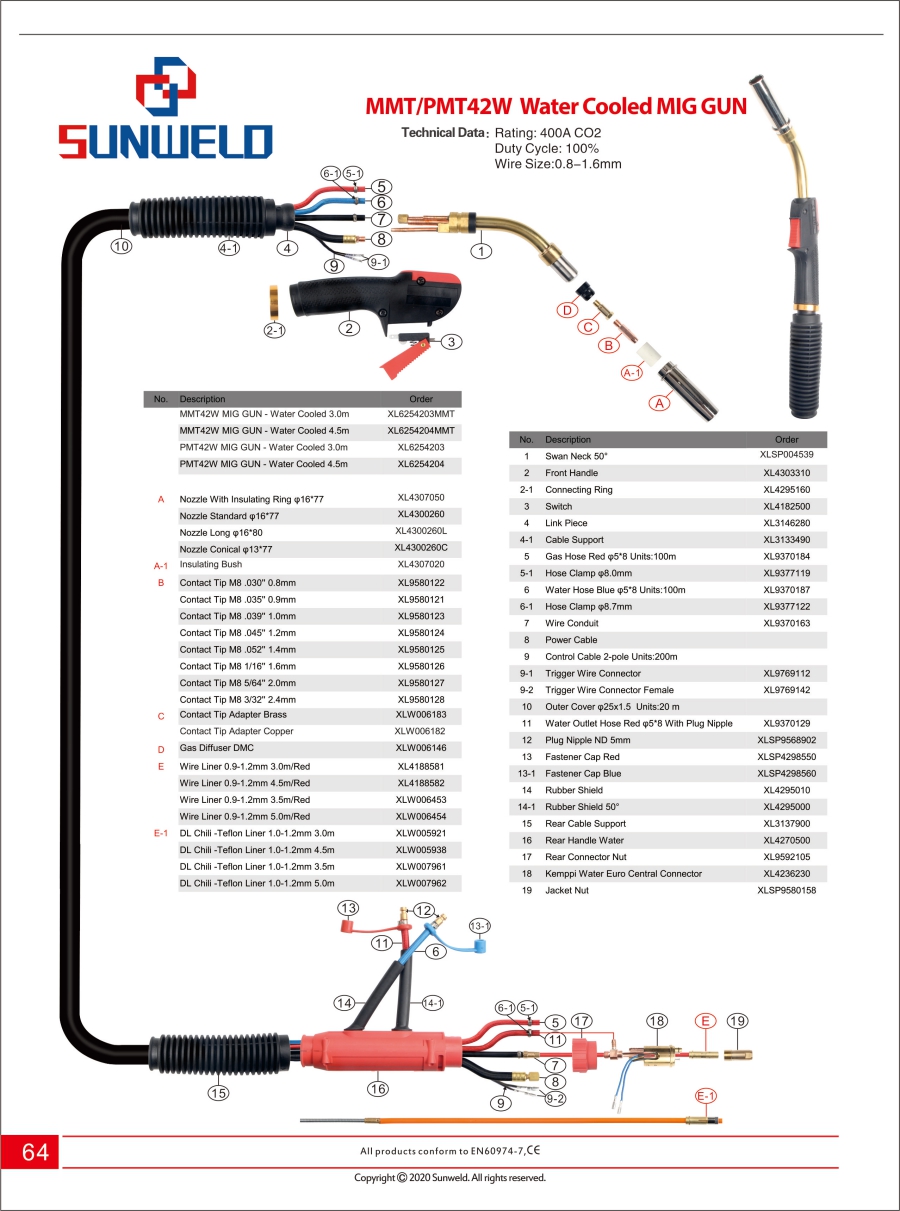

| MMT/PMT42W Water Cooled MIG GUN |
| Technical Data： |
Rating: 400A CO2 |
|
|
Duty Cycle:100% |
|
|
Wire Size:0.8-1.6mm |
|
|
|
|
| No. |
Description |
Order |
|
MMT42W MIG GUN – Water Cooled 3.0m |
XL6254203MMT |
|
MMT42W MIG GUN – Water Cooled 4.5m |
XL6254204MMT |
|
PMT42W MIG GUN – Water Cooled 3.0m |
XL6254203 |
|
PMT42W MIG GUN – Water Cooled 4.5m |
XL6254204 |
|
|
|
| A |
Nozzle With Insulating Ring φ16*77 |
XL4307050 |
|
Nozzle Standard φ16*77 |
XL4300260 |
|
Nozzle Long φ16*80 |
XL4300260L |
|
Nozzle Conical φ13*77 |
XL4300260C |
| A-1 |
Insulating Bush |
XL4307020 |
| B |
Contact Tip M8 .030” 0.8mm |
XL9580122 |
|
Contact Tip M8 .035” 0.9mm |
XL9580121 |
|
Contact Tip M8 .039” 1.0mm |
XL9580123 |
|
Contact Tip M8 .045” 1.2mm |
XL9580124 |
|
Contact Tip M8 .052” 1.4mm |
XL9580125 |
|
Contact Tip M8 1/16” 1.6mm |
XL9580126 |
|
Contact Tip M8 5/64” 2.0mm |
XL9580127 |
|
Contact Tip M8 3/32” 2.4mm |
XL9580128 |
| C |
Contact Tip Adapter Brass |
XLW006183 |
|
Contact Tip Adapter Copper |
XLW006182 |
| D |
Gas Diffuser DMC |
XLW006146 |
| E |
Wire Liner 0.9-1.2mm 3.0m/Red |
XL4188581 |
|
Wire Liner 0.9-1.2mm 4.5m/Red |
XL4188582 |
|
Wire Liner 0.9-1.2mm 3.5m/Red |
XLW006453 |
|
Wire Liner 0.9-1.2mm 5.0m/Red |
XLW006454 |
| E-1 |
DL Chili -Teflon Liner 1.0-1.2mm 3.0m |
XLW005921 |
|
DL Chili -Teflon Liner 1.0-1.2mm 4.5m |
XLW005938 |
|
DL Chili -Teflon Liner 1.0-1.2mm 3.5m |
XLW007961 |
|
DL Chili -Teflon Liner 1.0-1.2mm 5.0m |
XLW007962 |
|
|
|
| No. |
Description |
Order |
| 1 |
Swan Neck 50° |
XLSP004539 |
| 2 |
Front Handle |
XL4303310 |
| 2-1 |
Connecting Ring |
XL4295160 |
| 3 |
Switch |
XL4182500 |
| 4 |
Link Piece |
XL3146280 |
| 4-1 |
Cable Support |
XL3133490 |
| 5 |
Gas Hose Red φ5*8 Units:100m |
XL9370184 |
| 5-1 |
Hose Clamp φ8.7mm |
XL9377119 |
| 6 |
Water Hose Blue φ5*8 Units:100m |
XL9370187 |
| 6-1 |
Hose Clamp φ9.0mm |
XL9377122 |
| 7 |
Wire Conduit |
XL9370163 |
| 8 |
Power Cable |
|
| 9 |
Control Cable 2-pole Units:200m |
|
| 9-1 |
Trigger Wire Connector |
XL9769112 |
| 9-2 |
Trigger Wire Connector Female |
XL9769142 |
| 10 |
Outer Cover φ25×1.5 Units:20 m |
|
| 11 |
Water Outlet Hose Red φ5*8 With Plug Nipple ND 5mm |
XL9370129 |
| 12 |
Plug Nipple ND 5mm |
XLSP9568902 |
| 13 |
Fastener Cap Red |
XLSP4298550 |
| 13-1 |
Fastener Cap Blue |
XLSP4298560 |
| 14 |
Rubber Shield |
XL4295010 |
| 14-1 |
Rubber Shield 50° |
XL4295000 |
| 15 |
Rear Cable Support |
XL3137900 |
| 16 |
Rear Handle Water |
XL4270500 |
| 17 |
Rear Connector Nut |
XL9592105 |
| 18 |
Kemppi Water Euro Central Connector |
XL4236230 |
| 19 |
Jacket Nut |
XLSP9580158 |
