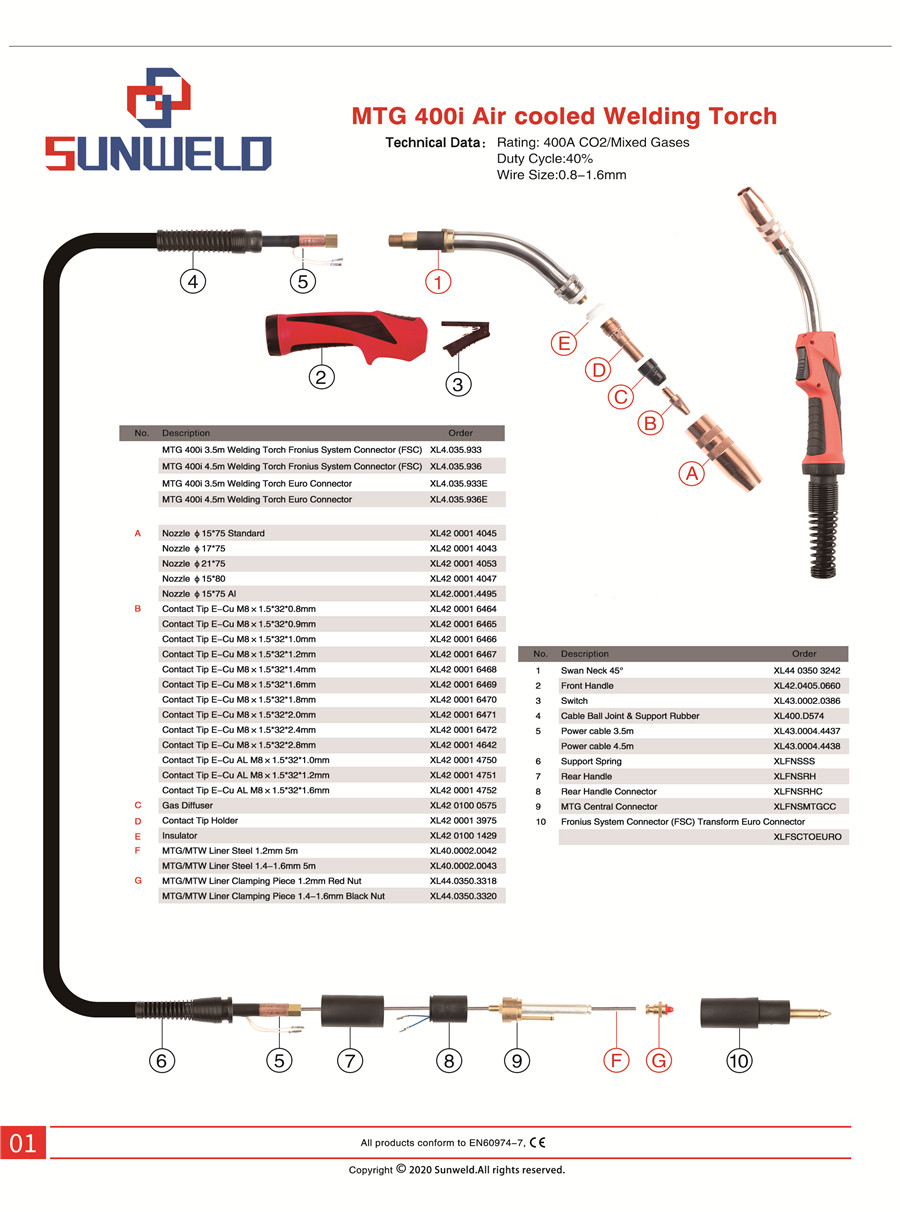

MTG 400i Air cooled Welding Torch |
|
| Technical Data： |
Rating: 400A CO2/Mixed Gases |
|
|
Duty Cycle:40% |
|
|
Wire Size:0.8-1.6mm |
|
| No. |
Description |
Order |
|
MTG 400i 3.5m Welding Torch Fronius System Connector (FSC) |
XL4.035.933 |
|
MTG 400i 4.5m Welding Torch Fronius System Connector (FSC) |
XL4.035.936 |
|
MTG 400i 3.5m Welding Torch Euro Connector |
XL4.035.933E |
|
MTG 400i 4.5m Welding Torch Euro Connector |
XL4.035.936E |
|
|
|
| A |
Nozzle φ15*75 Standard |
XL42 0001 4045 |
|
Nozzle φ17*75 |
XL42 0001 4043 |
|
Nozzle φ21*75 |
XL42 0001 4053 |
|
Nozzle φ15*80 |
XL42 0001 4047 |
|
Nozzle φ15*75 Al |
XL42.0001.4495 |
| B |
Contact Tip E-Cu M8×1.5*32*0.8mm |
XL42 0001 6464 |
|
Contact Tip E-Cu M8×1.5*32*0.9mm |
XL42 0001 6465 |
|
Contact Tip E-Cu M8×1.5*32*1.0mm |
XL42 0001 6466 |
|
Contact Tip E-Cu M8×1.5*32*1.2mm |
XL42 0001 6467 |
|
Contact Tip E-Cu M8×1.5*32*1.4mm |
XL42 0001 6468 |
|
Contact Tip E-Cu M8×1.5*32*1.6mm |
XL42 0001 6469 |
|
Contact Tip E-Cu M8×1.5*32*1.8mm |
XL42 0001 6470 |
|
Contact Tip E-Cu M8×1.5*32*2.0mm |
XL42 0001 6471 |
|
Contact Tip E-Cu M8×1.5*32*2.4mm |
XL42 0001 6472 |
|
Contact Tip E-Cu M8×1.5*32*2.8mm |
XL42 0001 4642 |
|
Contact Tip E-Cu AL M8×1.5*32*1.0mm |
XL42 0001 4750 |
|
Contact Tip E-Cu AL M8×1.5*32*1.2mm |
XL42 0001 4751 |
|
Contact Tip E-Cu AL M8×1.5*32*1.6mm |
XL42 0001 4752 |
| C |
Gas Diffuser |
XL42 0100 0575 |
| D |
Contact Tip Holder |
XL42 0001 3975 |
| E |
Insulator |
XL42 0100 1429 |
| F |
MTG/MTW Liner Steel 1.2mm 5m |
XL40.0002.0042 |
|
MTG/MTW Liner Steel 1.4-1.6mm 5m |
XL40.0002.0043 |
| G |
MTG/MTW Liner Clamping Piece 1.2mm Red Nut |
XL44.0350.3318 |
|
MTG/MTW Liner Clamping Piece 1.4-1.6mm Black Nut |
XL44.0350.3320 |
|
|
|
| No. |
Description |
Order |
| 1 |
Swan Neck 45° |
XL44 0350 3242 |
| 2 |
Front Handle |
XL42.0405.0660 |
| 3 |
Switch |
XL43.0002.0386 |
| 4 |
Cable Ball Joint & Support Rubber |
XL400.D574 |
| 5 |
Power cable 3.5m |
XL43.0004.4437 |
|
Power cable 4.5m |
XL43.0004.4438 |
| 6 |
Support Spring |
XLFNSSS |
| 7 |
Rear Handle |
XLFNSRH |
| 8 |
Rear Handle Connector |
XLFNSRHC |
| 9 |
MTG Central Connector |
XLFNSMTGCC |
| 10 |
Fronius System Connector (FSC) Transform Euro Connector |
XLFSCTOEURO |
