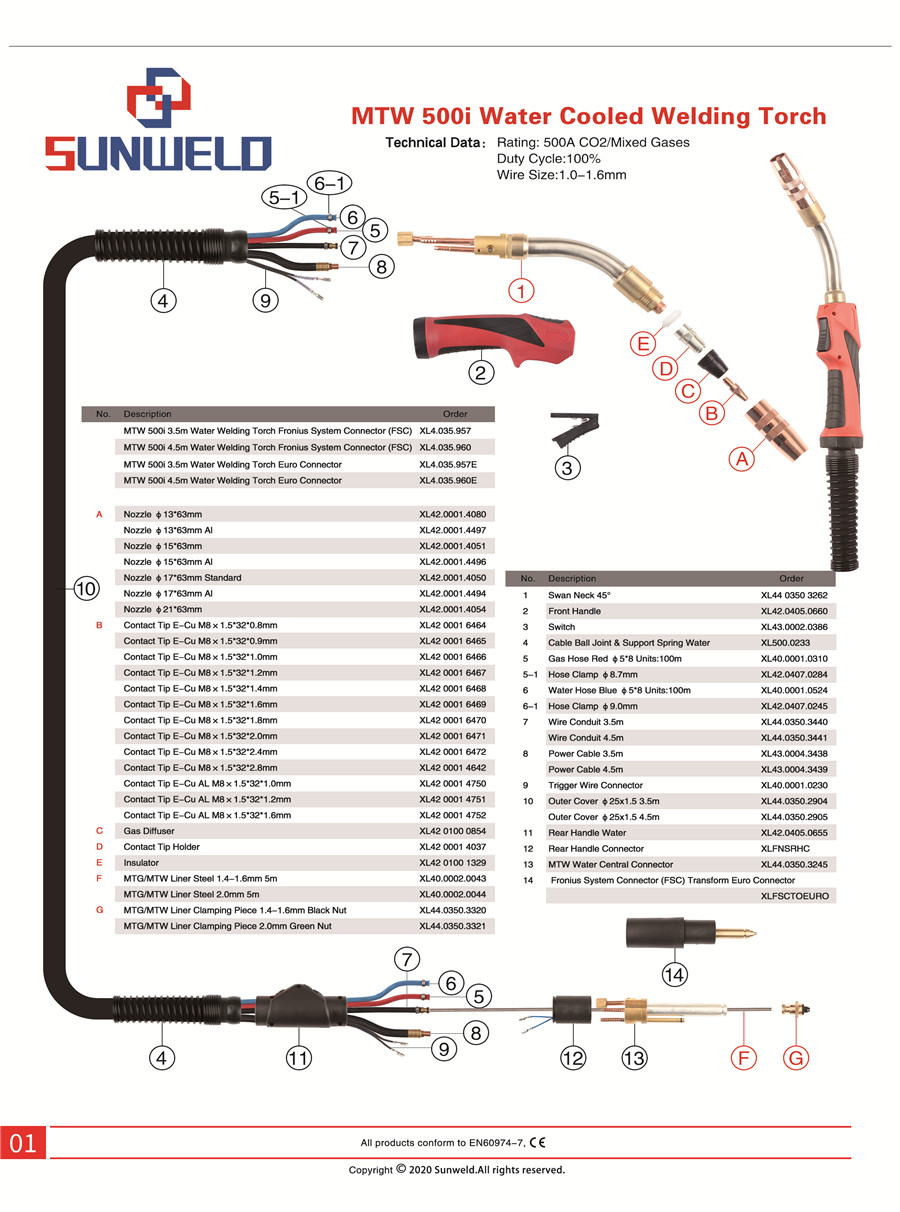

MTW 500i Water Cooled Welding Torch |
|
| Technical Data： |
Rating: 500A CO2/Mixed Gases |
|
|
Duty Cycle:100% |
|
|
Wire Size:1.0-1.6mm |
|
| No. |
Description |
Order |
|
MTW 500i 3.5m Water Welding Torch Fronius System Connector (FSC) |
XL4.035.957 |
|
MTW 500i 4.5m Water Welding Torch Fronius System Connector (FSC) |
XL4.035.960 |
|
MTW 500i 3.5m Water Welding Torch Euro Connector |
XL4.035.957E |
|
MTW 500i 4.5m Water Welding Torch Euro Connector |
XL4.035.960E |
|
|
|
| A |
Nozzle φ13*63mm |
XL42.0001.4080 |
|
Nozzle φ13*63mm Al |
XL42.0001.4497 |
|
Nozzle φ15*63mm |
XL42.0001.4051 |
|
Nozzle φ15*63mm Al |
XL42.0001.4496 |
|
Nozzle φ17*63mm Standard |
XL42.0001.4050 |
|
Nozzle φ17*63mm Al |
XL42.0001.4494 |
|
Nozzle φ21*63mm |
XL42.0001.4054 |
| B |
Contact Tip E-Cu M8×1.5*32*0.8mm |
XL42 0001 6464 |
|
Contact Tip E-Cu M8×1.5*32*0.9mm |
XL42 0001 6465 |
|
Contact Tip E-Cu M8×1.5*32*1.0mm |
XL42 0001 6466 |
|
Contact Tip E-Cu M8×1.5*32*1.2mm |
XL42 0001 6467 |
|
Contact Tip E-Cu M8×1.5*32*1.4mm |
XL42 0001 6468 |
|
Contact Tip E-Cu M8×1.5*32*1.6mm |
XL42 0001 6469 |
|
Contact Tip E-Cu M8×1.5*32*1.8mm |
XL42 0001 6470 |
|
Contact Tip E-Cu M8×1.5*32*2.0mm |
XL42 0001 6471 |
|
Contact Tip E-Cu M8×1.5*32*2.4mm |
XL42 0001 6472 |
|
Contact Tip E-Cu M8×1.5*32*2.8mm |
XL42 0001 4642 |
|
Contact Tip E-Cu AL M8×1.5*32*1.0mm |
XL42 0001 4750 |
|
Contact Tip E-Cu AL M8×1.5*32*1.2mm |
XL42 0001 4751 |
|
Contact Tip E-Cu AL M8×1.5*32*1.6mm |
XL42 0001 4752 |
| C |
Gas Diffuser |
XL42 0100 0854 |
| D |
Contact Tip Holder |
XL42 0001 4037 |
| E |
Insulator |
XL42 0100 1329 |
| F |
MTG/MTW Liner Steel 1.4-1.6mm 5m |
XL40.0002.0043 |
|
MTG/MTW Liner Steel 2.0mm 5m |
XL40.0002.0044 |
| G |
MTG/MTW Liner Clamping Piece 1.4-1.6mm Black Nut |
XL44.0350.3320 |
|
MTG/MTW Liner Clamping Piece 2.0mm Green Nut |
XL44.0350.3321 |
|
|
|
| No. |
Description |
Order |
| 1 |
Swan Neck 45° |
XL44 0350 3262 |
| 2 |
Front Handle |
XL42.0405.0660 |
| 3 |
Switch |
XL43.0002.0386 |
| 4 |
Cable Ball Joint & Support Spring Water |
XL500.0233 |
| 5 |
Gas Hose Red φ5*8 Units:100m |
XL40.0001.0310 |
| 5-1 |
Hose Clamp φ8.7mm |
XL42.0407.0284 |
| 6 |
Water Hose Blue φ5*8 Units:100m |
XL40.0001.0524 |
| 6-1 |
Hose Clamp φ9.0mm |
XL42.0407.0245 |
| 7 |
Wire Conduit 3.5m |
XL44.0350.3440 |
|
Wire Conduit 4.5m |
XL44.0350.3441 |
| 8 |
Power Cable 3.5m |
XL43.0004.3438 |
|
Power Cable 4.5m |
XL43.0004.3439 |
| 9 |
Trigger Wire Connector |
XL40.0001.0230 |
| 10 |
Outer Cover φ25×1.5 3.5m |
XL44.0350.2904 |
|
Outer Cover φ25×1.5 4.5m |
XL44.0350.2905 |
| 11 |
Rear Handle Water |
XL42.0405.0655 |
| 12 |
Rear Handle Connector |
XLFNSRHC |
| 13 |
MTW Water Central Connector |
XL44.0350.3245 |
| 14 |
Fronius System Connector (FSC) Transform Euro Connector |
XLFSCTOEURO |
