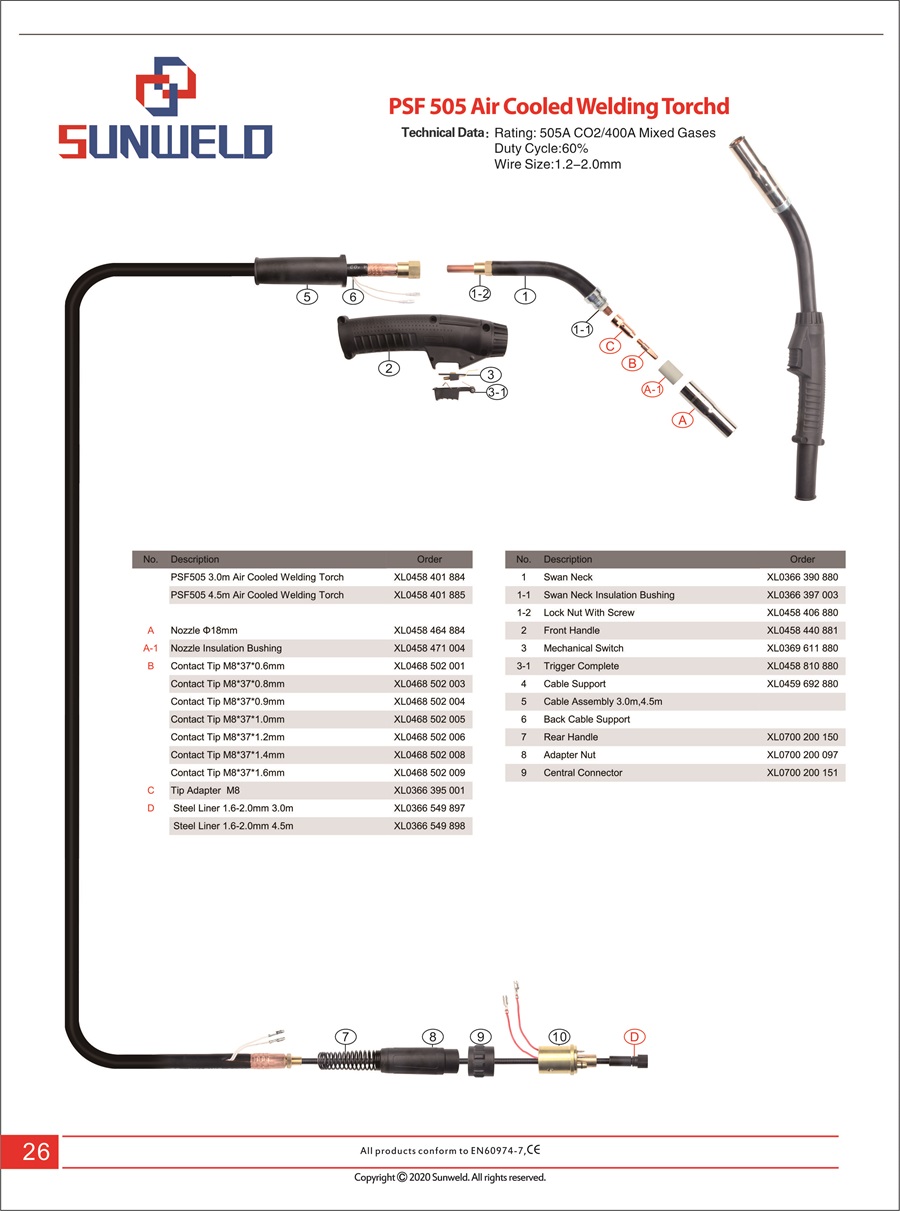

PSF 505 Air Cooled Welding Torchd |
Technical Data: |
Rating: 500A CO2/400A Mixed Gases |
|
|
Duty Cycle:60% |
|
|
Wire Size:1.2-2.0mm |
|
|
|
|
No. |
Description |
Order |
|
PSF505 3.0m Air Cooled Welding Torch |
XL0458 401 884 |
|
PSF505 4.5m Air Cooled Welding Torch |
XL0458 401 885 |
|
|
|
A |
Nozzle Φ18mm |
XL0458 464 884 |
A-1 |
Nozzle Insulation Bushing |
XL0458 471 004 |
B |
Contact Tip M8*37*0.6mm |
XL0468 502 001 |
|
Contact Tip M8*37*0.8mm |
XL0468 502 003 |
|
Contact Tip M8*37*0.9mm |
XL0468 502 004 |
|
Contact Tip M8*37*1.0mm |
XL0468 502 005 |
|
Contact Tip M8*37*1.2mm |
XL0468 502 006 |
|
Contact Tip M8*37*1.4mm |
XL0468 502 008 |
|
Contact Tip M8*37*1.6mm |
XL0468 502 009 |
C |
Tip Adapter M8 |
XL0366 395 001 |
D |
Steel Liner 1.6-2.0mm 3.0m |
XL0366 549 897 |
|
Steel Liner 1.6-2.0mm 4.5m |
XL0366 549 898 |
|
|
|
No. |
Description |
Order |
1 |
Swan Neck |
XL0366 390 880 |
1-1 |
Swan Neck Insulation Bushing |
XL0366 397 003 |
1-2 |
Lock Nut With Screw |
XL0458 406 880 |
2 |
Front Handle |
XL0458 440 881 |
3 |
Mechanical Switch |
XL0369 611 880 |
3-1 |
Trigger Complete |
XL0458 810 880 |
4 |
Cable Support |
XL0459 692 880 |
5 |
Cable Assembly 3.0m,4.5m |
|
6 |
Back Cable Support |
|
7 |
Rear Handle |
XL0700 200 150 |
8 |
Adapter Nut |
XL0700 200 097 |
9 |
Central Connector |
XL0700 200 151 |
