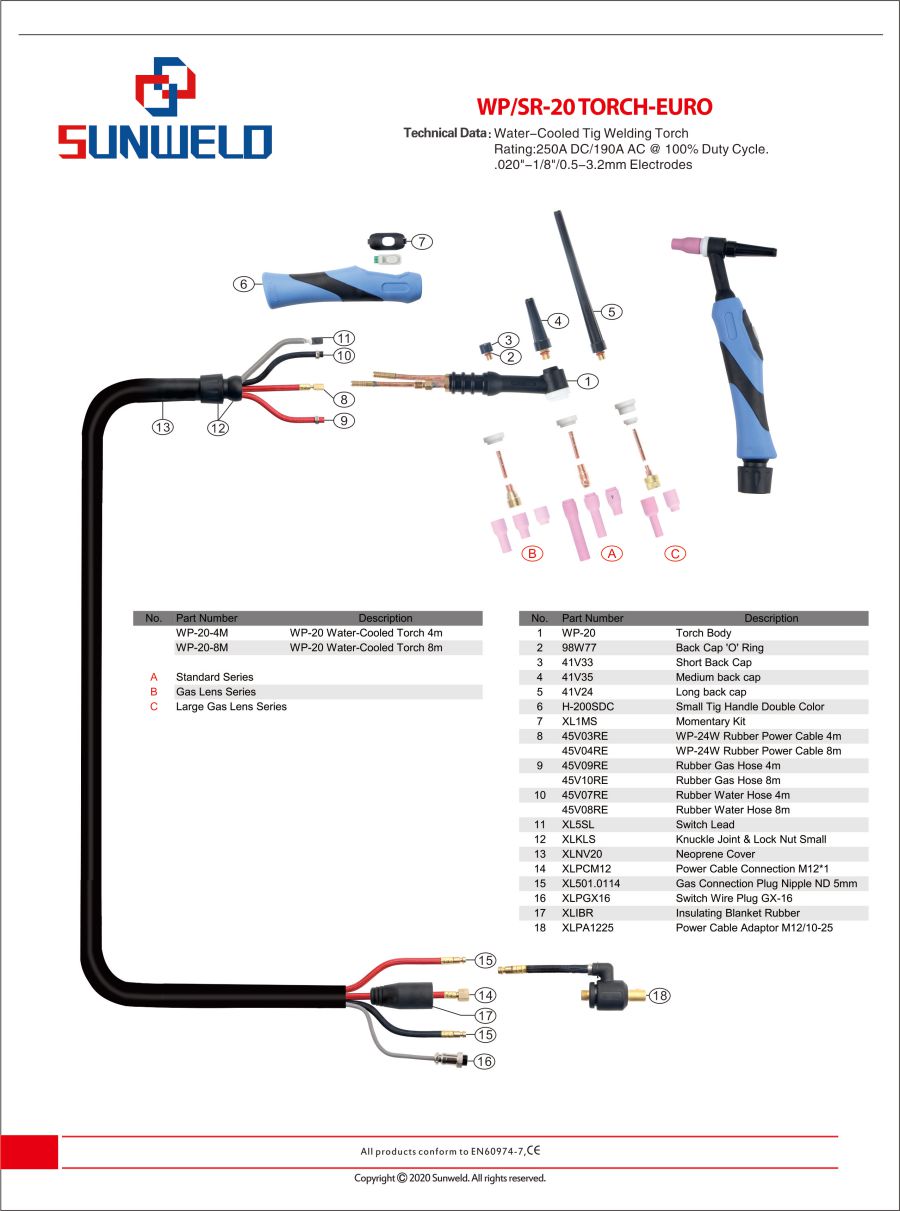

WP/SR-20 TORCH-EURO

WP/SR-20 TORCH-EURO

Water-Cooled Tig Welding Torch

Rating:250A DC/190A AC @ 100% Duty Cycle.

.020″-1/8″/0.5-3.2mm Electrodes

No. Part Number Description

WP-20-4M WP-20 Water-Cooled Torch 4m

WP-20-8M WP-20 Water-Cooled Torch 8m

Product Detail

	WP/SR-20 TORCH-EURO
	Water-Cooled Tig Welding Torch
	Rating:250A DC/190A AC @ 100% Duty Cycle.
	.020″-1/8″/0.5-3.2mm Electrodes
No.	Part Number	Description
	WP-20-4M	WP-20 Water-Cooled Torch 4m
	WP-20-8M	WP-20 Water-Cooled Torch 8m

A	Standard Series
B	Gas Lens Series
C	Large Gas Lens Series

No.	Part Number	Description
1	WP-20	Torch Body
2	98W77	Back Cap ‘O’ Ring
3	41V33	Short Back Cap
4	41V35	Medium back cap
5	41V24	Long back cap
6	H-200SDC	Small Tig Handle Double Color
7	XL1MS	Momentary Kit
8	45V03RE	WP-24W Rubber Power Cable 4m
	45V04RE	WP-24W Rubber Power Cable 8m
9	45V09RE	Rubber Gas Hose 4m
	45V10RE	Rubber Gas Hose 8m
10	45V07RE	Rubber Water Hose 4m
	45V08RE	Rubber Water Hose 8m
11	XL5SL	Switch Lead
12	XLKLS	Knuckle Joint & Lock Nut Small
13	XLNV20	Neoprene Cover
14	XLPCM12	Power Cable Connection M12*1
15	XL501.0114	Gas Connection Plug Nipple ND 5mm
16	XLPGX16	Switch Wire Plug GX-16
17	XLIBR	Insulating Blanket Rubber
18	XLPA1225	Power Cable Adaptor M12/10-25
