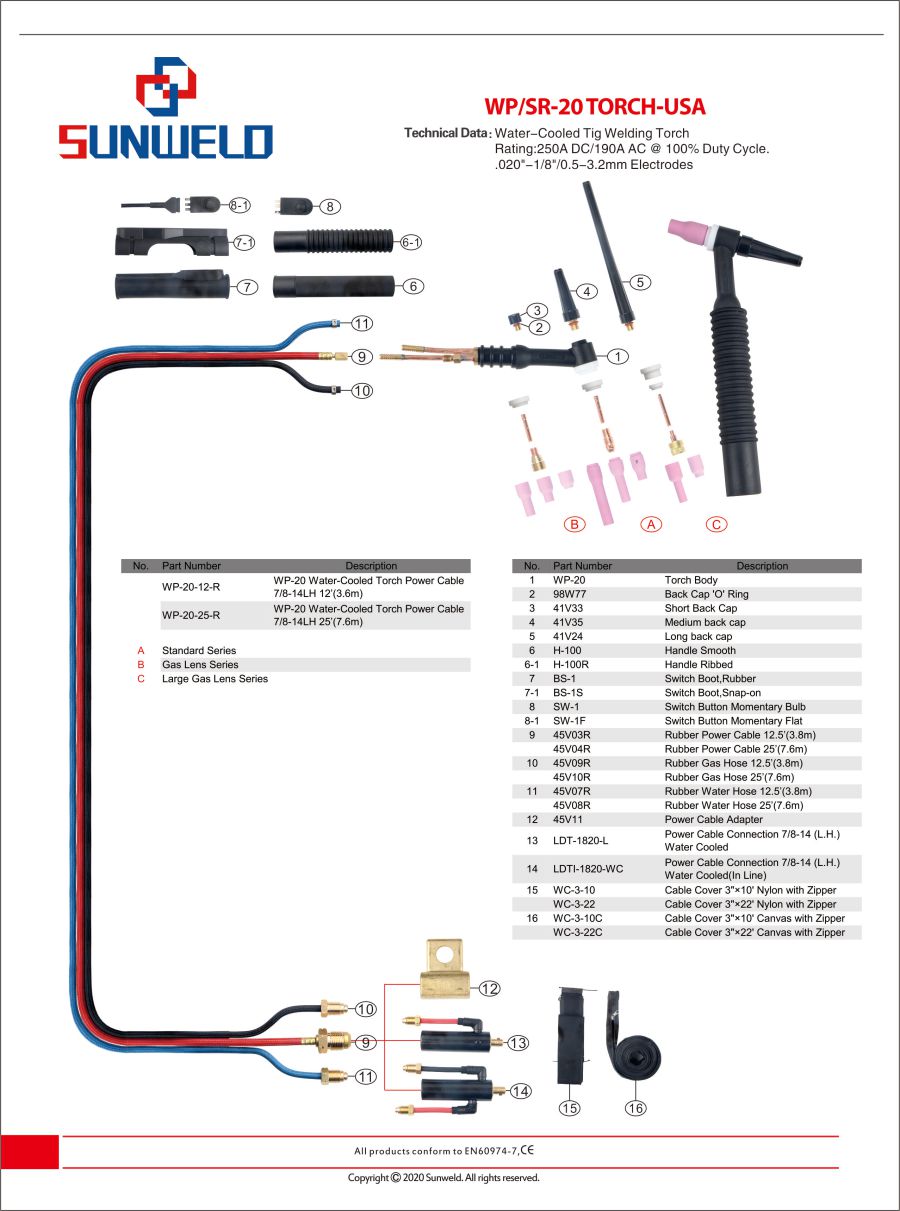

WP/SR-20 TORCH-USA

WP/SR-20 TORCH-USA

Water-Cooled Tig Welding Torch

Rating:250A DC/190A AC @ 100% Duty Cycle.

.020″-1/8″/0.5-3.2mm Electrodes

No. Part Number Description

WP-20-12-R WP-20 Water-Cooled Torch Power Cable 7/8-14LH 12’ (3.6m)

WP-20-25-R WP-20 Water-Cooled Torch Power Cable 7/8-14LH 25’ (7.6m)

Product Detail

	WP/SR-20 TORCH-USA
	Water-Cooled Tig Welding Torch
	Rating:250A DC/190A AC @ 100% Duty Cycle.
	.020″-1/8″/0.5-3.2mm Electrodes

No.	Part Number	Description
	WP-20-12-R	WP-20 Water-Cooled Torch Power Cable 7/8-14LH 12’(3.6m)
	WP-20-25-R	WP-20 Water-Cooled Torch Power Cable 7/8-14LH 25’(7.6m)

A	Standard Series
B	Gas Lens Series
C	Large Gas Lens Series

No.	Part Number	Description
1	WP-20	Torch Body
2	98W77	Back Cap ‘O’ Ring
3	41V33	Short Back Cap
4	41V35	Medium back cap
5	41V24	Long back cap
6	H-100	Handle Smooth
6-1	H-100R	Handle Ribbed
7	BS-1	Switch Boot,Rubber
7-1	BS-1S	Switch Boot,Snap-on
8	SW-1	Switch Button Momentary Bulb
8-1	SW-1F	Switch Button Momentary Flat
9	45V03R	Rubber Power Cable 12.5’(3.8m)
	45V04R	Rubber Power Cable 25’(7.6m)
10	45V09R	Rubber Gas Hose 12.5’(3.8m)
	45V10R	Rubber Gas Hose 25’(7.6m)
11	45V07R	Rubber Water Hose 12.5’(3.8m)
	45V08R	Rubber Water Hose 25’(7.6m)
12	45V11	Power Cable Adapter
13	LDT-1820-L	Power Cable Connection 7/8-14 (L.H.) Water Cooled
14	LDTI-1820-WC	Power Cable Connection 7/8-14 (L.H.) Water Cooled(In Line)
15	WC-3-10	Cable Cover 3″×10′ Nylon with Zipper
	WC-3-22	Cable Cover 3″×22′ Nylon with Zipper
16	WC-3-10C	Cable Cover 3″×10′ Canvas with Zipper
	WC-3-22C	Cable Cover 3″×22′ Canvas with Zipper
