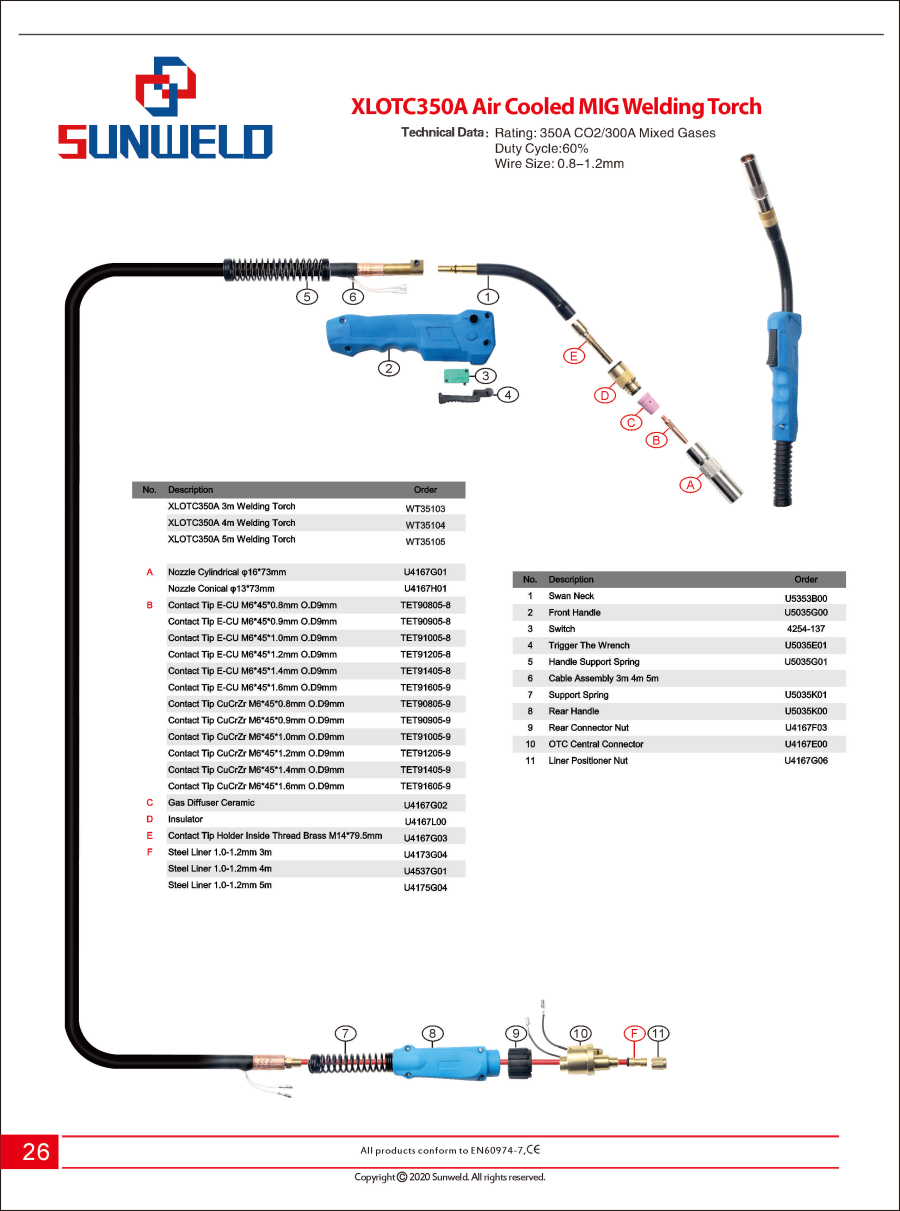

| XLOTC350A Air Cooled MIG Welding Torch |
| Technical Data: |
Rating: 350A CO2/300A Mixed Gases |
|
|
Duty Cycle:60% |
|
|
Wire Size: 0.8-1.2mm |
|
|
|
|
| No. |
Description |
Order |
|
XLOTC350A 3m Welding Torch |
WT35103 |
|
XLOTC350A 4m Welding Torch |
WT35104 |
|
XLOTC350A 5m Welding Torch |
WT35105 |
|
|
|
| A |
Nozzle Cylindrical φ16*73mm |
U4167G01 |
|
Nozzle Conical φ13*73mm |
U4167H01 |
| B |
Contact Tip E-CU M6*45*0.8mm O.D9mm |
TET90805-8 |
|
Contact Tip E-CU M6*45*0.9mm O.D9mm |
TET90905-8 |
|
Contact Tip E-CU M6*45*1.0mm O.D9mm |
TET91005-8 |
|
Contact Tip E-CU M6*45*1.2mm O.D9mm |
TET91205-8 |
|
Contact Tip E-CU M6*45*1.4mm O.D9mm |
TET91405-8 |
|
Contact Tip E-CU M6*45*1.6mm O.D9mm |
TET91605-9 |
|
Contact Tip CuCrZr M6*45*0.8mm O.D9mm |
TET90805-9 |
|
Contact Tip CuCrZr M6*45*0.9mm O.D9mm |
TET90905-9 |
|
Contact Tip CuCrZr M6*45*1.0mm O.D9mm |
TET91005-9 |
|
Contact Tip CuCrZr M6*45*1.2mm O.D9mm |
TET91205-9 |
|
Contact Tip CuCrZr M6*45*1.4mm O.D9mm |
TET91405-9 |
|
Contact Tip CuCrZr M6*45*1.6mm O.D9mm |
TET91605-9 |
| C |
Gas Diffuser Ceramic |
U4167G02 |
| D |
Insulator |
U4167L00 |
| E |
Contact Tip Holder Inside Thread Brass M14*79.5mm |
U4167G03 |
| F |
Steel Liner 1.0-1.2mm 3m |
U4173G04 |
|
Steel Liner 1.0-1.2mm 4m |
U4537G01 |
|
Steel Liner 1.0-1.2mm 5m |
U4175G04 |
|
|
|
| No. |
Description |
Order |
| 1 |
Swan Neck |
U5353B00 |
| 2 |
Front Handle |
U5035G00 |
| 3 |
Switch |
4254-137 |
| 4 |
Trigger The Wrench |
U5035E01 |
| 5 |
Handle Support Spring |
U5035G01 |
| 6 |
Cable Assembly 3m 4m 5m |
|
| 7 |
Support Spring |
U5035K01 |
| 8 |
Rear Handle |
U5035K00 |
| 9 |
Rear Connector Nut |
U4167F03 |
| 10 |
OTC Central Connector |
U4167E00 |
| 11 |
Liner Positioner Nut |
U4167G06 |
